WOODFAC FACADE SYSTEM WITH WOODEN LAMELLAE

PATENTED DANISH FACADE SYSTEM WITH FIRE-RESISTANT WOODEN LAMELLAE

Woodfac is a system in which architecture and functionality go hand in hand. It can be individually designed and adapted without compromising architectural freedom.

The basic idea behind Woodfac is a simple, lightweight and modular system of exclusive quality that contributes to climate-friendly, fire-resistant and future-proof construction.

The Lamellae are designed in any length and variable cc distances and are installed horizontally, vertically or as a ceiling and roof. This offers "freedom of choice" and allows the façade solution to be adapted to the building and not vice versa.

Whatever your wishes and needs, we offer you a complete solution and ensure that the façade design is executed in accordance with the architectural and structural requirements.

We offer professional advice and guidance on the solutions, design and fire protection requirements that are crucial to the success of your façade project.

Only creativity sets the limits for Woodfac-facadefacade cladding!

WOODFAC
CLICK OR
WOODFAC
PANEL

STILREN FACADEBEKLÆDNING

Nordisk Profil A/S is a specialist in facade construction and a producer of patented Danish facade systems that meet the architectural requirements and set new standards for facades.


Vores fundament er enkelt: Lad fantasien guide og skab noget ekstraordinært!

Grundtanken bag Nordisk Profils komplette facadeløsninger er stilrene, enkle og modulære systemer i eksklusiv kvalitet, der bidrager til et bæredygtigt, klimavenligt og brandsikkert byggeri.



Facadesystemerne are all unique, distinctive solutions with a 'freedom to create'. This means that it is important to adopt a unique facade solution to achieve a compromise between design and functionality. With a solution from Nordisk Profil, it's all about the bygones that rammeætter løsningen but løsningen that gør bygningen unik med det flotteste resultat.

Woodfac Click is an open system with optional Wooden lamellae on an underlying aluminum structure. With a view of the building's load-bearing façade, it is possible to compose a lively architecture created by light, shadow, materials and design.

The system offers corner solutions, various cover profiles, solutions for curved facade and reinforcement profiles that enable a high clearance in both horizontal and vertical directions.

Woodfac Click is particularly suitable for cladding parking garages .

The open Facade system makes it easy to give parking garages a certain "wow factor". Many parking garages are built in the middle of beautiful apartment blocks. Why shouldn't they look just as inviting as their surroundings and their environment?

With wooden slats as cladding, you have the opportunity to build beautiful and timeless parking spaces with a natural and warm appearance that develops a beautiful patina over time.

Woodfac Panel is a closed system that functions like a building envelope. The system consists of optional Wooden lamellae that are mounted on aluminum panels. The aluminum panels protect the building from the weather and are equipped with a ventilation system that allows the façade to "breathe".

The panel solution comprises variable single, double and corner panels with punched holes for façade screws, which are concealed when the panels are clipped together.

The system offers a wide range of accessory profiles for finishing and edging doors, windows (glazing profiles) and other façade elements.

Wooden lamellae

Wooden lamellae are made from FSC®- or PEFC™-certified wood, which ensures sustainable and responsible forestry.

For the fire impregnation of the Wooden lamellae , a Cradle to Cradle-certified flame retardant is used, which consists of 100% natural substances, is free of toxic and VOC emissions and is completely biodegradable.

The thermal treatment of the Lamellae ensures dimensional stability and an exceptional service life of up to 50+ years, depending on the type of wood.

THERMAL MOVEMENT

Thermal movement refers to the natural expansion and contraction of materials as a result of temperature fluctuations.

Thermal movement is integrated into all our facade solutions so that the individual components can move independently of each other. This ensures that there is no internal stress, strain or structural damage to the individual components or the entire façade solution.

ALUMINUM STRUCTURE

The structure and profiles of the façade system are made from certified recycled aluminum.

Greenline® aluminum is made from 100% collected and recycled aluminum and has an extremely low carbon footprint of only 1.8 kg CO₂-eq./kg, compared to primary aluminum, which has a footprint of 11.1.

Wooden lamellae

THERMAL MOVEMENT

ALUMINUM STRUCTURE

STYLISH FACADE CLADDING FOR ALL TYPES OF NEW BUILDINGS OR RENOVATIONS

Scandinavian architecture is known for its simple, functional and aesthetic design and not least for its sustainable aspirations. And these are precisely the principles behind the Woodfac-FacadeFacade system .

With Lamellae in any type of wood, you get a natural and inviting facade that blends in beautifully with the surroundings and can be designed exactly as desired.

Woodfac is fire tested and a very safe and affordable choice for an ecologically and economically sustainable façade solution. Just as a façade clad with Woodfac wood cladding is a maintenance-free and unique system that is second to none.

Different types of wood

Nordisk Profil recommends the following certified wood species based on durability, dimensional stability and fire safety properties. All wood species combine aesthetics, durability and sustainability and guarantee Lamellae of the highest quality. Click on the wood species to find out more.

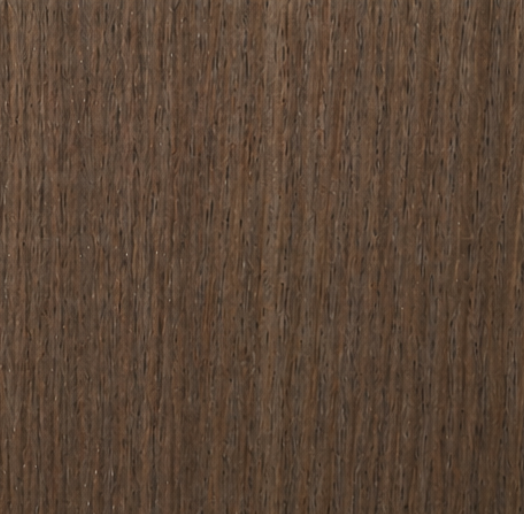

Thermo ash

Thermo ash

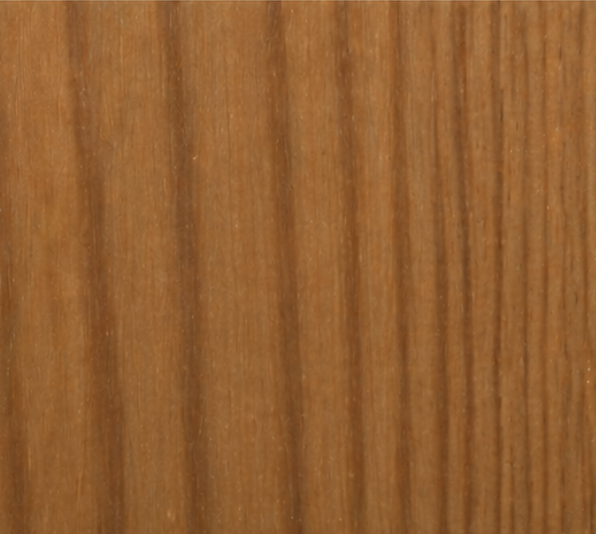

Thermo pine

Thermo pine

Premium thermal pine

Premium thermal pine

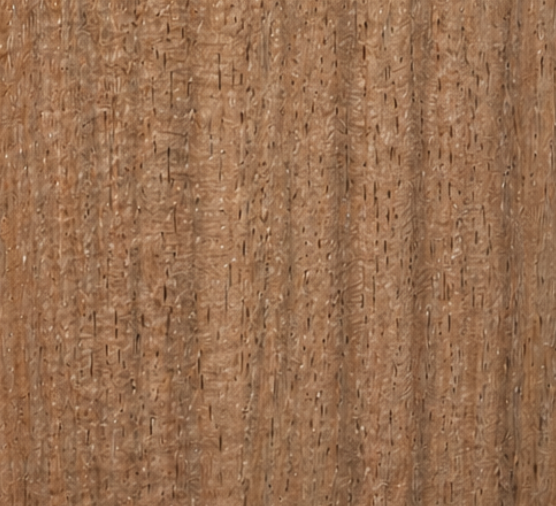

Western red cedar

Western red cedar

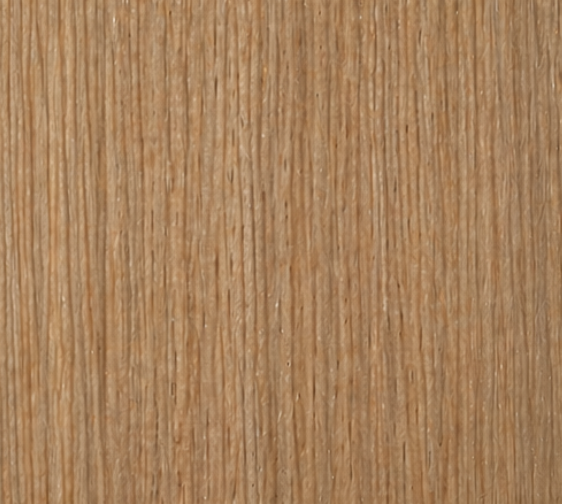

Thermoayous

Thermoayous

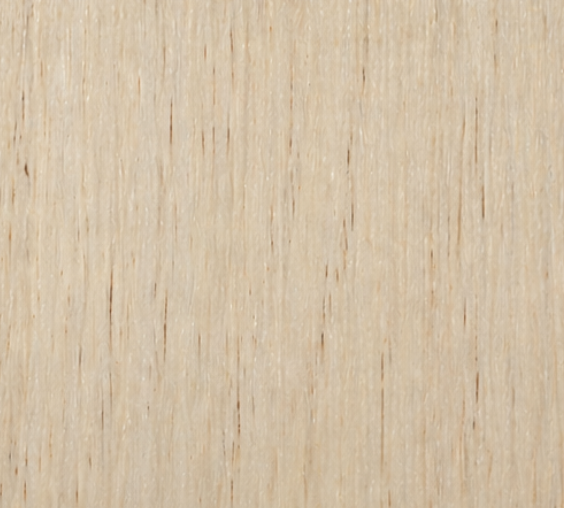

Accoya

Accoya

Exclusive appearance

The attention to detail of an installed façade is crucial for a beautiful, unique and sharp look.

At Nordisk Profil, we focus on offering our customers an exclusive façade solution that inspires enthusiasm in the choice of materials, design and function.

The Lamellae are carefully selected and must meet our strict requirements to ensure that only the best are installed.

Another special feature of the facade from Nordisk Profil is that it is installed completely without visible screws. This gives the façade a clean and clear appearance that is not disturbed by drill holes in the beautiful wooden slats.

Freedom of choice

The diversity, variety and unique architectural design of the buildings help to make the cityscape lively and exciting.

Nordisk Profil wants to contribute to this development by offering flexible and complete facade solutions , which, with its suspension system, enables the realization of combination façades with a variety of expressions and designs.

Woodfac can be combined with partial solutions and can, for example, be combined with perforated sheets, expanded metal, trapezoidal sheets, profiled sheets, etc. All Lamellae can also be installed vertically, horizontally and as a curved façade, resulting in a very soft and organic appearance.

It is the "freedom of choice" and the freedom to create the most unique facade .

FIRE-SAFE FACADE SYSTEM

Nordisk Profil sets very high standards for fire protection and is at the forefront of end-user solutions.

In fact, as an installed Facade system , Woodfac is the only facade solution on the market that has been tested and approved in accordance with European standard EN 13501-1. And passed according to B-s1,d0 / B-s2,d0 - depending on the type of wood.

The requirements for a fire-resistant façade are varied and are often interpreted differently. But if you want a beautiful and natural façade, you can get advice and sparring from Nordisk Profil.

We specialize in fire classes, requirements, regulations and documentation needs for wood cladding solutions.

Read more about fire and safety here

Help with façade planning?

WOODEN LAMELLAE FOR OUTDOOR AREAS - WHEN THE FACADE SHOULD IMPRESS

Wood is an excellent, CO₂-reducing material for use as façade slats in outdoor areas.

Nordisk Profil recommends various types of wood that are particularly suitable for exterior façades due to their dimensional stability, resistance, durability and fire protection class.

The wood species differ in their appearance due to their colors and knot patterns. Regardless of the type of wood, however, façade slats develop a patina over time that takes on gray tones and nuances. The patina depends on the position of the façade and the environmental influences.

There may be a desire to use pre-patinated Lamellae , as was the case with the exclusive Papirøen building project, for example. There, all the Lamellae were evenly patinated before installation - a process that Nordisk Profil undertook in collaboration with the architect and client.

As the first building blocks of a construction project, planning should have the highest priority. Leave this to Nordisk Profil and get your façade to its destination safely and risk-free

"
